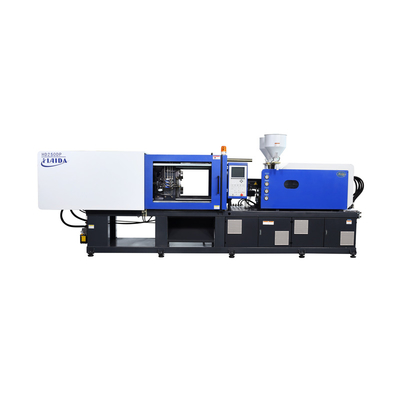

Haida Horizontal Double Colors HD250DP 250 Ton Plastic Injection Molding Machine For Sale In Pakistan Business

1.0 Sets
MOQ
Haida Horizontal Double Colors HD250DP 250 Ton Plastic Injection Molding Machine For Sale In Pakistan Business
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Style: Horizontal
Distance Between Tie Bars(Width)(mm): 910mm
Distance Between Tie Bars(Height)(mm): 570mm
Ejector Stroke(mm): 110 Mm
Ejector Force(kN): 66 KN
Theoretical Shot Volume(cm³): 489 Cm³
Injection Rate (g/s): 258 G/s
Machine Type: Hydraulic
Injection Weight (g): 445 G
Screw Diameter (mm): 45 Mm
Distance Between Tie Bars: 910*570
Weight (KG): 12000
Type: Preform Injection
Place Of Origin: Zhejiang, China
Open Stroke(mm): 460 Mm
Model Number: HD250DP
Brand Name: HAIDA
Power (kW): 51.7 KW
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Manufacturing Plant, Machinery Repair Shops
Showroom Location: Viet Nam, Brazil, Thailand, South Africa, Uzbekistan
Marketing Type: New Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, PLC, Screw
Plastic Type: Thermoplastic
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Voltage: 380V/ 50Hz 3P+N+E (alterable)
Control: Techmation
LANGUAGE: Language Customized
Opening Stroke: 460MM
Injection Rate: 128-195/80-125g/s
Injection Weight: 234-366g/117-183g
Weight: 12T
Power: 18.7+12KW
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Viet Nam, Brazil, Thailand, South Africa, Uzbekistan
Certification: CE/ISO9001
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: HAIDA
Certification: CE/ISO9001
Model Number: HD250DP
Payment & Shipping Terms
Packaging Details: WOODEN PALLET
Supply Ability: 100 Set/Sets per Month
Product Description
Product Categories
Product Description
HD250DP Servo Energy-Saving Plastic Injection Molding Machine
Number Item
HD250DP
Category
Hot sale IMM
OEM
Available
Warranty
1 Year
Factory
Yes

Application >>

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.


Technical Parameters >>

ITEM
MODEL
Unit
HD250DP
INJECTION
I
2
A
B
C
A
B
C
Screw Diameter
mm
40
45
50
32
36
40
Screw L/D Ratio
L/D
22.5
20
18
22.5
20
18
Shot Volume
cm ³
257
326
402
129
163
201
Shot Weight
G
234
297
366
117
148
183
Injection rate
G/S
128
157
195
80
101
125
Injection Pressure
Mpa
225
178
144
225
178
144
Plasticizing ability
G/s
18
23
28
10
13
16
CLAMPING

UNIT
Clamping Force
KN
2500
Platen Stroke
mm
460
Space Between Tie-bars
mm
910*570
Mould Thickness(Main-Max)
mm
200-510
Ejector Stroke
mm
110
Ejector Force
KN
33x2
Ejector Number
PC
5*2
Rotary bearing
t
1.1
Mould center distance
mm
490
Turntable diameter
mm
Ø1000
OTHERS
System Pressure
Mpa
16
Motor Power
KW
18.7+12
Heater Power
KW
12+9
Mold Location Recess Diameters
MM
Ø125
Machine Weight(about)
t
12
Nozzle Radius
mm
SR10
Detailed Images
About Us
Certificates
Exhibition and Customer Visiting


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.


We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton. These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
