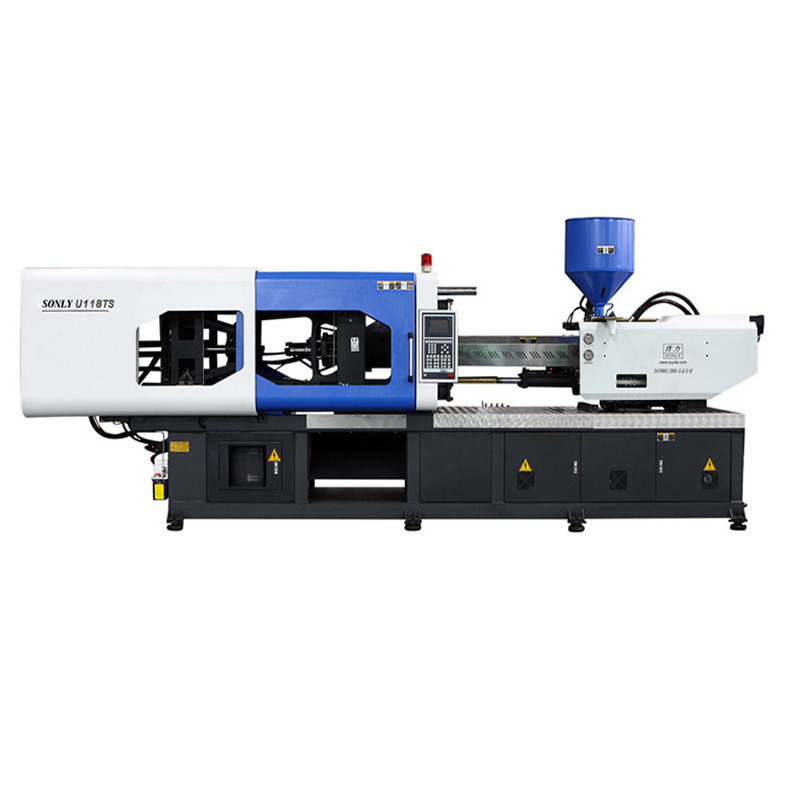

SONLY's "U-TS"series with clamping force ranges from 98 to 3400 ton injection molding machine. Besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine, high speed injection machine.
One.The Lock Section
1.Arch template, effectively protects the mould, especially suitable for big template with small mold.
2.The electric ruler is installed on the crosshead, the position is more precise.
3.The front connecting rod uses connected structure, increases the rod strength, and easy for assembly
4.The connected tail-board stills itself with big lock shaft, improves tail-board strength, and ensures zero abrasion of the tail-board, easy for maintenance.
5.Connected movable plate, improves its rigidity and reduces deformation
6.Connected thrust bearing, improves its strength and stills itself with small lock shaft, ensures zero abrasion.
7.Arch template fully complies with mechanical property, largely improves template strength.
8.More reasonable toggle design, speeds and stabilizes mold opening and closing.
9.Adjustable movable plate mounting plate, makes the installation easier.
10.Mixed design of T-shape groove and die hole, increases universality of the mold.
Two.The Injection Section.
1.Bridge type support, improves injection smoothness.
2.Longer length-diameter ratio screw design, improves plasticizing effect.
3.Double seal structure, ensures no oil leakage.
4.Withhold type press plate, easy for debugging and assembly.
5.Bijection structure, improves stability.
Model | Shot Weight | Model | Shot Weight |
146 gram | 196 gram | ||
217 gram | 289 gram | ||
361 gram | 411 gram | ||
518 gram | 642 gram | ||
710 gram | 913 gram | ||
1243 gram | 1512 gram | ||
1788 gram | 2018 gram | ||
2263 gram | 2437 gram | ||
3164 gram | 4018 gram | ||
5553 gram | 7186 gram | ||
7972 gram | 9245 gram | ||
12054 gram | 23753 gram | ||
40596 gram | 50960 gram |
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
