Plastic Processed:
PP, HDPE, PA, PE, PE/PP
Condition:
New
Style:
Horizontal
Distance Between Tie Bars(Width)(mm):
370 Mm Mm
Distance Between Tie Bars(Height)(mm):
370 Mm Mm
Ejector Stroke(mm):
120 Mm Mm
Ejector Force(kN):
38 KN
Theoretical Shot Volume(cm³):
193.2 Cm³
Injection Rate (g/s):
104 G/s
Machine Type:
Hydraulic
Injection Weight (g):
176 G G
Screw Diameter (mm):
38 Mm Mm
Distance Between Tie Bars:
370*370mm
Weight (KG):
3400
Type:
Tube Head Injection
Place Of Origin:
Zhejiang, China
Open Stroke(mm):
350 Mm Mm
Model Number:
HCS110
Brand Name:
HAICHEN
Power (kW):
5.5 KW
Warranty:
1 Year
Key Selling Points:
Competitive Price
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw

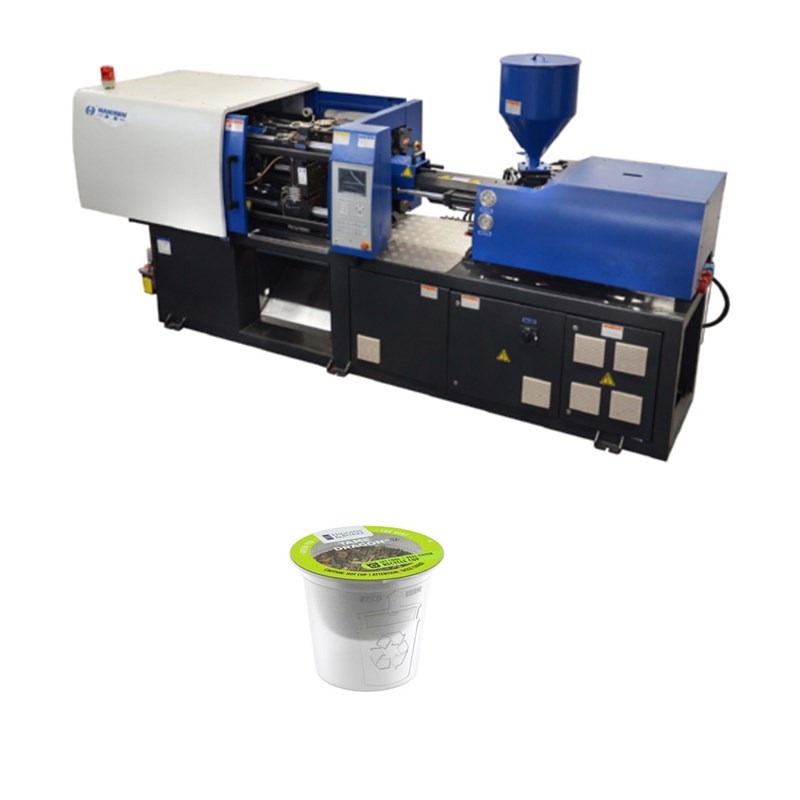

Product Name:
Plastic Injection Moulding Machine
MAX Mold Height:
380
Min,mold Height:
150
Max.pump Pressure:
16
Heating Power:
6
Oiltank Cubage:
200
Injection Pressure:
184
Used For:
Plasic Products
Color:
Blue \ White
Application:
Inserting Plastic Products
Plastic Type:
Thermoplastic
Clamping Force (kN):
1100 KN
Automatic:
Yes
After-sales Service Provided:
Video Technical Support, Online Support
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
Turkey
Certification:
ISO9001/CE
