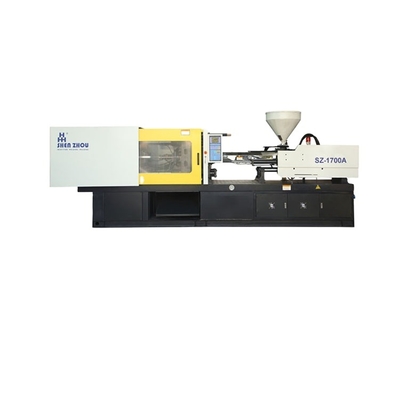

Desktop Plastic Injection Molding Machine High Technology Horizontal Small Products

1 Set
MOQ
$19,000.00(1 - 3 Sets) $17,000.00(>=4 Sets)
Price
Desktop Plastic Injection Molding Machine High Technology Horizontal Small Products
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, HDPE, PA, PE, LDPE, HDPE/PP, ABS/PP, PE/PP
Condition: New
Style: Horizontal
Distance Between Tie Bars(Width)(mm): 480mm
Distance Between Tie Bars(Height)(mm): 480mm
Ejector Stroke(mm): 115 Mm
Ejector Force(kN): 45.2 KN
Theoretical Shot Volume(cm³): 442 Cm³
Injection Rate (g/s): 175 G/s
Machine Type: Hydraulic
Injection Weight (g): 402 G
Screw Diameter (mm): 50 Mm
Weight (KG): 5600 Kg
Place Of Origin: China
Open Stroke(mm): 460 Mm
Power (kW): 15 KW
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant, Other
Showroom Location: None
Marketing Type: New Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1.5 Years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw
Product Name: Small Products Desktop Plastic Injection Molding Machine
Keyword: Small Injection Moulding Machine
Function: Multifunctional Plastic Products Making
Motor: Servo Energy Saving
Color: Customers' Request
BRAND: SHENZHOU
Advantages: Energy Efficient
Operation Language: Multilingual, You Can Choose
Automatic: Yes
Plastic Type: Thermoplastic
Basic Infomation
Place of Origin: China
Brand Name: SHENZHOU
Payment & Shipping Terms
Packaging Details: Export standard Wooden case or wooden pallet packaging
Supply Ability: 50 Set/Sets per Month
Product Description
Product Details

Clamping Unit

●New type 5-point toggle device of stable movement curve,gentle shock.
●Superior mould platen to ensure no out of shape if high-pressure clamping.
●Hard chrome plated high tensile strength tie bars made of superior alloy.
●Wear-resistant guide for moving platen.
●Transducer control clamping stroke.
●Many step control for speed and pressure of clamping and opening.
●Eiection device offer dwell,single,more, vibration function.
●Low pressure mould protection function.
●Hydraulic mould height adjustment with roungh and fine operation.
●Mechanical and electrical dual safety interlock.
●Automatic centralized lubrication system with far pressure detector.

Injection Unit

●Nitrided screw and barrel with long service life.
●Smelted screw with big L/D ratio with good plasticizing and color-fixing.
●Double injection cylinder of compact construction and good equilibrant.
●Transducer control injection stroke.
●The speed of low speed and large torque hydraulic motor can be adjusted.
●Screw back pressure control and nozzle anti-leakage control movable hopper for easy remove material.
●Injection-catriage can be used for slacking,re-feedingor fixed-feeding.
●Speed and pressure of injecting and holding controlled by time or position.
●Equipped with reverse device to be easily removed and cleaned.

Hydraulic System

●Proportional pressure and flow control with fine adjustment and precision.
●Know-how manifold design,compact,reasonable and fast
respond.
●Imported world famous hydraulic valves.
●Imported world famous hydraulic sealing rings.
●Imported technology hydraulic hose and fittings.
●Low noise hydraulic system.
●Precision oil filter and oil cooler.

Control System

●Adopt PLC control system.
●High reliability and strong anti-interference ability.
●Complete functions and strong applicability.
●User-friendly Design.It is easy to operate and is well received by engineering and technical personnel.
●PLC replaces wiring logic with storage logic, which greatly shortens the design and construction cycle of the control system. It is easy to maintain, easy to transform, and suitable for many kinds of production occasions.


Why Choose Us
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management 2. Continuous technological innovation, optimized product structure, longer service life 3. Lifetime maintenance of the product, 24 hours after-sales service 4. The main components are all world-renowned brands 5. Dedicated quality control department 6. Ex-factory price
Service Capabilities

ONE-STOP Injection Molding Engineering Solution

1.Supporting service capabilities.From injection molding machines to molds, auxiliary machines, and plastic products, we can achieve turnkey projects; we can help you complete the plant design and quickly build a complete production line.

2.Quick response capability.We have after-sales service centers and technical representatives in many places at home and abroad. If your products have any problems, we can solve them in time.

3.Comprehensive service capabilities.Customer first! We strictly implement this principle in every aspect of the transaction. For example, during machine R&D and design, the layout of the operating system and circuit is optimized to facilitate the subsequent operation and maintenance of customers. We have always been thinking about problems from the perspective of customers and providing you with the most humane service!
Auxiliary machine list
Follow us！
and You will get: 1.Live exploration factory.
2.A service team with 20 years of rich experience.
3. Auxiliary machines or accessories are free!
etc...
Product Paramenters
SZ-1700A INJECTION UNIT
ITEM
UNIT
VALUE
SCREW DIAMETER
mm
45
50
55
SCREW L/D RATIO
L/D
23.3
21
19.1
Theoretical Shot Volume
cm^3
358
442
534
SHOW WEIGHT(PS)
g
326
402
486
INJECTION PRESSURE
Mpa
219
178
147
THEORETICAL INJECTION RATE(PS)
g/s
142
175
212
PLASTICISING CAPACITY
g/s
20.1
26.5
34.2
SCREW TORQUE
N.m
1250
MAX.SCREW ROTATE SPEED
r/min
200
INJECTION STROKE
mm
225
SZ-1700A CLAMPING UNIT
ITEM
UNIT
VALUE
MAX.CLAMPING FORCE
KN
1700
MAX.OPENING STROKE
mm
460
SPACE BETWEEN TIE BARS
mm
480*480
MOULD HEIGHT
mm
180-500
MAX.DAYLIGHT
mm
960
EJECTOR FORCE
KN
45.2
EJECTOR STROKE
mm
115
EJECTOR QUANTITY
5
SZ-1700A OTHER
ITEM
UNIT
VALUE
PUMP MOTOR POWER
kw
15
PUMP PRESSURE
Mpa
16
HEATING POWER
kw
13.6
HEATING ZONE
4
SIZE
m
5.3*1.35*1.9
NET WEIGHT
t
5.6
OIL TANK CAPACITY
L
420
INTERNATIONAL DESIGNATION
1700-785
Company Profile
VR

SHENZHOU-Since 1999

We specialize in manufacturing and exporting injection molding machines, with an injection weight of 60-10000 grams and a clamping force of 95-1600 tons. Using more than 20 years of injection molding machine knowledge and experience, implementing the most modern design and precision manufacturing, using imported famous and high-quality hydraulic, electrical, and sealing parts, we have manufactured the SZ series of fully automatic computerized injection molding machines and their downstream equipment. They are characterized by high quality, high reliability, stable operation and attractive price/performance ratio. Our machines can meet customer needs and profits. Compared with machines in other factories, our machine has larger injection weight, larger opening stroke and larger distance between tie rods. With high-quality and innovative products, excellent productivity, efficient management, perfect technical solutions and services, our machines are sold to more than 20 domestic provinces and cities, and exported to the Middle East, Southeast Asia, Russia, Central Asia, Africa, America, Europe and many more. All our customers have given high praise to our machines and services.
Customer story
Old friend.
The client's name is Obed, from Tanzania. He is our old friend. We have been working with him for more than 15 years and we have
established a deep friendship. At the beginning, Obed was our ordinary customer. After a period of mutual cooperation and
understanding, he has become our technical representative in Tanzania and can provide various technical support to our customers
in Tanzania. At the end of 2020, we will have 23 injection molding machines and a large number of molds sent to Tanzania.
Large Orders.
The order is from Turkmenistan. A customer friend of ours bought 26 injection molding machines of various models and a large
number of molds and auxiliary equipment at a time. After receiving the order, we attach great importance to it, speed up the
operation of the workshop, and complete the scheduled tasks in advance. The picture shows a customer in Uzbekistan. We have a vast market in this region.
Government program.
This project is a cooperation project between us and Ethiopian AG pipe fitting company in 2019. Our company started cooperation
with Ethiopia long ago. We have delivered more than 15 injection molding machines and more molds to Ethiopia.
Packing & Delivery
We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience.
FAQ
1.Q:Are you a factory or trading company? A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit ! 2.Q:How does your factory do regarding quality control? A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department. 3.Q:What are your normal lead times? A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks. 4.Q:About the price? A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price. 5.Q:How is your machine different from other businesses？ A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use. 6.Q:Where is your factory located? How can I visit there? A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Suzhou Zhangjiagang City China. All our clients,from home or abroad, are warmly welcome to visit us!
You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you!
