Plastic Processed:
PP, PET, Other
Condition:
New
Style:
Horizontal
Distance Between Tie Bars(Width)(mm):
355mm
Distance Between Tie Bars(Height)(mm):
315mm
Ejector Stroke(mm):
70 Mm
Ejector Force(kN):
27 KN
Theoretical Shot Volume(cm³):
190 Cm³
Injection Rate (g/s):
78 G/s
Machine Type:
Hydraulic
Injection Weight (g):
173 G
Screw Diameter (mm):
38 Mm
Distance Between Tie Bars:
280mm*260mm
Weight (KG):
2700
Type:
Tube Head Injection
Place Of Origin:
Zhejiang, China
Open Stroke(mm):
254 Mm
Model Number:
FHG100
Brand Name:
FUHONG
Power (kW):
17 KW
Warranty:
2 Years
Key Selling Points:
High Productivity
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, Pump, PLC
Plastic Type:
Thermoplastic
Automatic:
Yes
Product Name:

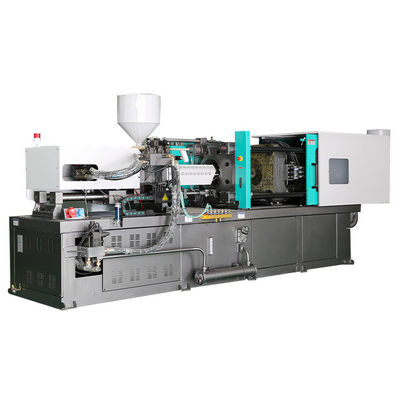

Small 100ton Pp Plastic Injection Moulding Machine Price For Sale
Injection Pressure:
144mpa-170mpa
Screw Diameter:
35mm-38mm
Space Between Tie Bar:
355mm*315mm
Mould Thickness:
150mm-380mm
Ejector Stroke:
70mm
Heating Power:
6.9kw
Machine Dimension(L*W*H):
3.81m*1.3m*1.7m
After-sales Service Provided:
Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
After Warranty Service:
No Service
Local Service Location:
None
Certification:
TUV CE
