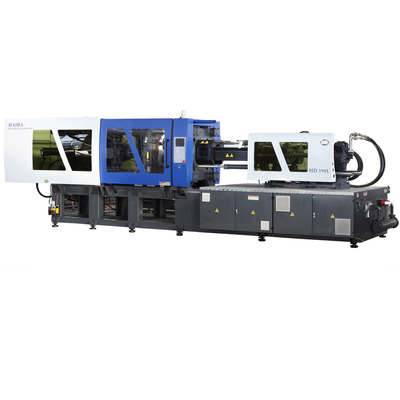

Haida HD330L PET Horizontal Plastic Crate Pipe PVC Preform Injection Molding Machine Soft Plastic For 300 Ton Injection Machine

1.0 Sets
MOQ
Haida HD330L PET Horizontal Plastic Crate Pipe PVC Preform Injection Molding Machine Soft Plastic For 300 Ton Injection Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Condition: New
Style: Horizontal
Distance Between Tie Bars(Width)(mm): 680 Mm
Distance Between Tie Bars(Height)(mm): 680 Mm
Ejector Stroke(mm): 170 Mm
Ejector Force(kN): 91 KN
Theoretical Shot Volume(cm³): 1155 Cm³
Injection Rate (g/s): 307.8 G/s
Machine Type: Hydraulic
Injection Weight (g): 1051 G
Screw Diameter (mm): 70 Mm
Distance Between Tie Bars: 680x680
Weight (KG): 13000
Type: Preform Injection
Place Of Origin: Zhejiang, China
Open Stroke(mm): 660 Mm
Model Number: HD330L
Brand Name: HAIDA
Power (kW): 53.3 KW
Warranty: 1 Year, One Year
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant
Showroom Location: Viet Nam, Brazil, Thailand, South Africa, Uzbekistan
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, PLC, Screw
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Keyword: Small Sized Plastic Injection Molding Machine
Voltage: 380V/ 50Hz 3P+N+E (alterable)
Screw Diameter: 65-75mm
Injection Pressure: 203-152mpa
Machine Dimension(L*W*H): 7.44x1.97x2.51
Opening Stroke: 660mm
Injection Rate: 270.6-360.3g/s
Injection Weight: 906-1206g
Plastic Type: Thermoplastic
Automatic: Yes
Clamping Force (kN): 3300
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Viet Nam, Brazil, Thailand, South Africa, Uzbekistan
Certification: CE/ISO9001
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: HAIDA
Certification: CE/ISO9001
Model Number: HD330L
Payment & Shipping Terms
Packaging Details: wooden pallet and wooden box
Supply Ability: 30 Set/Sets per Month
Product Description
Product Categories
Product Description
HD330L High Precision Servo Energy-Saving Plastic Injection Machine
Number Item
HD330L
Category
HDL Series
OEM
Available
Warranty
1 Year
Factory
Yes

Application>>

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.

Technical Parameters >>

MODEL
HD330L
ITEM
UNIT
DATA



INJECTION UNIT
Screw Diameter
mm
65
70
75
Screw L/D Ratio
L/D
22.6
21
19.6
Injection Volume
CM3
996
1155
1325
Shot Weight
g
906
1051
1206
Injection Rate
g/s
270.6
313.8
360.3
Injection Pressure
Mpa
203
175
152



CLAMPING UNIT
Clamping Force
KN
3300
Opening Stroke
mm
660
Space Between Tie-Bars
mm
680X680
Mould Thickness(Min-Max)
mm
250-680
Hydraulic Ejection
KN
91
Ejector Stroke
mm
170





GENERAL
Pump Pressure
MPa
16
Motor Power
KW
37
Heater
KW
23.3
Machine Dimension
m
7.44X1.97X2.51
Machine Weight
t
11.5
Mould Orientation Ring Diameter
mm
Φ160
Nozzle Radius
mm
SR15




Characteristics >>


HAIDA L series high precision Servo Energy-saving Injection Machine

New series model launched on the basis of the original series, to meet higher requirements of customers. Coexisted specificity and generality, screw of multiple diameters are optional for each model ,to realize optimized product quality.


Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0.
Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.
