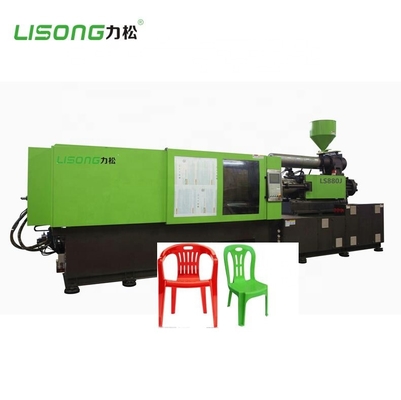

LISONG high speed injection molding machine
China leading high-speed injection molding machine manufacturer.
Best choice for thin wall products .
*HELP help you*
H-higher speed 157mm/s
E-energy saving more with new servo motor
L-larger size space between tie-bars
P-precision more help you to make product better with less material
Specification
| Model: | LS880J | Voltage/ Hertz: | 380V/50hz (other voltage/hertz,pls specify.) |
| Brand: | LISONG | Feature: | High speed, high energy saving |
| Description: | Servo system high speed injection molding machine | MOQ: | 1 set |
| Fits for | buckets, plastic basins,plastic toys,plastic flower pots,platic dustbins,chairs so on. | ||
| Delivery time: | 45 workdays | Payment term: | TT/ LC |
| Place of Original: | China | Supply ability: | More than 800 sets per year. |
| How to find the suitable IMM? | 1. Pls offer the drawings of your product or mould size. 2. If no drawing or mould size, pls offer the samples. 3. If no samples, pls offer the measurement and the weight with the cavities your want. 4. We will check and offer you the most suitable machine. | Loading port: | Ningbo port |
No hesitate to contact us finding your suitable machine
TECHNICAL PARAMETER OF LS880J
SPECIFICATION | CN | LS880J | |||
Injection Unit
| Screw specification |
| A | B | C |
Screw Diameter | mm | 95 | 105 | 110 | |
Screw L/D Ratio | L/D | 24 | 21.7 | 20.7 | |
Shot volume (Theoretical) | cm³ | 3542 | 4327 | 4749 | |
Shot Weight | G | 3223 | 3937 | 4322 | |
Injection Rate | g/s | 667 | 905 | 993 | |
Injection Pressure | Mpa | 181 | 133 | 121 | |
Screw Speed (max.) | n/Min | 100 | |||
Clamping Unit
| Clamping Force (Theoretical) | KN | 8800 | ||
Toggle Stroke | mm | 1025 | |||
Space Between Tie-bars | mm | 1010*1010 | |||
Max. Mold Height | mm | 975 | |||
Min. Mold Height | mm | 380 | |||
Ejector Stroke | mm | 300 | |||
Ejector Force | KN | 275 | |||
Others
| Max. Pump Pressure | Mpa | 16 | ||
Servo Motor Power | KW | 41+41 | |||
Heater Power | KW | 45.8 | |||
Machine Dimension(LxWxH) | M | 11.8*2.5*3.1 | |||
Oil Tank Capacity | L | 1300 | |||
Machine Weight(Approximate) | T | 36 | |||
1. What's our minimum order quantity ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. What detailed informations do we need if you want to order our procduct ?
Product pictures with measurments or drawings, sample best, product weight, material, cavities
3. Any discount?
Yes. For larger quantities(more than 20pcs), we will give you some discount.
4. Have after-sale service?
Yes, please kindly contact us at any time. Also have an after-sale office in Kuala Lumpur.
5. Are we a factory or trading company?
We are a real factory in Ningbo and we are one of the leader of high-speed injection molding machine in China.
6. Can we print client's logo?
Yes, we can do that.
7. How can you more info about injection molding machine production processess?
We have a factory product food containers inside of LISONG factory. Here you can find out how LISONG machine product and how food containers are produced.
8.What quote do you offer?
EXW/FOB / CIF and others ways according to your needs. When the quality is same, our price can be more competitive.
9. How to pay?
30% deposit T/T in advance, the balance 70% payment by T/T before delivery (we accept payment by T/T, L/C etc.)
