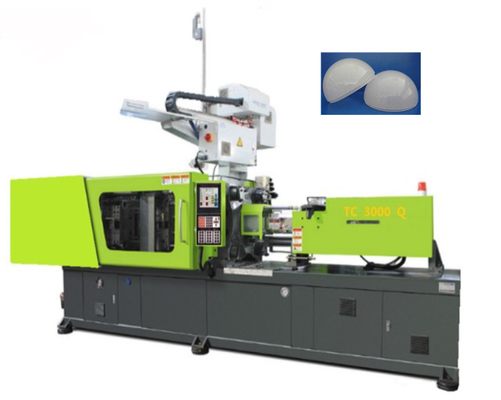

Features & Applications:
1. Rotary Blow Injection Tower, drives independent servo motor, positioning accuracy reaches up to 0.16 points; Two blow injection molds rotate by 180 degree and works alternately.
2. The equipment is easy to operate and maintain, similar to normal injection molding machine.
3. This solution adopts robot to take out finished products, realize the automatic production, can reach a production cycle time as 15-18 seconds.
Finished Product display:
| MODEL | UNIT | TC-3000-Q | |
INJECTION UNIT |
Screw Diameter | MM | 60 |
| Maximum Injection Pressure | Kg/Cm2 | 2130 | |
| Theoretical Shot Volume | Cm3 | 845 | |
| Maximum Shot Weight(PS) | G/oz | 769 | |
| Injection Rate | Cm3/sec | 296 | |
| Screw Speed | R/Min | 0-220 | |
| Screw Stroke | Mm | 300 | |
| Nozzle Stroke | mm | 30 | |
CLAMPING UNIT |
Clamping Force | Ton | 300 |
| Opening Force | Ton | 25 | |
| Platen Size | MM | 900*900 | |
| Slide Stroke | MM | 600 | |
| Space Between Tie-Bar | MM | 660*660 | |
| Minimum Mold Thickness | MM | 560 | |
| Open Daylight | MM | 1345 | |
ELE.UNIT |
Max.Hydraulic Pressure | Kg/cm2 | 140 |
| Pump Output | l/min | 76 | |
| Oil Tank Capacity | L | 850 | |
| Cooling Water Consumption | I/h | 1000-1200 | |
| Electric Power | Kw | 30 | |
OTHERS |
Machine Dimension(Approx.) | M | 6.8*2.1*2.45 |
| Machine Weight(Approx.) | Kg | 110000 | |
| Specifications are subject to change without prior notice. | |||
Our Services:
1. Recommend on needs:
We offer information of product/molds dimensions/operating materials/technical detas/budget,we will make a recommendation and comparison molds to you.
2. We provide OEM service to our customers.
3. Automatic aulixiary customized device.
such as machanical hand for product taking out and insert cacessories putting in, auto roll material feeder for garment hanging tag, or efficiency-promoted options in machine structures design like rotary table and slide table, as well as servo adoped.
4. Technical support.
In some case,professional technical support will be needed,such as first time parameter or live emergency fault clearing.You can both enquiry on line or email us.Immediate response will be vailable during working hours.
5. Warranty & after-sales service.
We provide one year warranty for machine & accessories, delivery charges of parts replacement on customers.We can also provide overseas maintenance support to pur customers, flights & living costs on customer.
Relevant machines & molds-->:
PROFESSIONAL TEAM GLOBALIZATION SERVICES
Dongguan Tiancheng Machinery Co., Ltd., established in 1999, locates in Dongguan City (world-famous manufacture base), covers an area more than 8000m, owns advanced facilities, professional technical team & modern manage system. Product range covers from standard type, rotary, slip form, two color, Bakelite, BMC, liquid silicone, to plastic injection around equipments such as material dryer, suction feeder, mould design, automatic mechanical.
1. Super strong R&D, with several Patent Applications of Automatic Production Auxiliary Equipments (injection molding machine around).
2. Simple working style, Aggressive investment in production facilities & work flow planning, offer customer highly qualified machines & moulds at most reasonable price.
3. Customer mainly covers over Asia, Southern America, Eastern Europe, including Samsung, Flextronics, COSONIC, CLIP, etc. Engineers are available to serve overseas. One- year Warranty as basic, plus Worry-free After-sales Service (online message / email / phone call Q&A, detail Graphic instructions, troubleshooting demonstration video, etc.).
a) How can I place order?
A: You can contact us by email about your order details, or place order on line.
b) How can I pay you?
A: After you confirm our PI, you can pay through T/T (HSBC bank) and L/C.
c) What’s the order procedure?
A: 1. First we discuss order details, production details by e-mail or online consultation (Wechat / WhatsApp).
2. Then we issue an PI for your confirmation. Customer should makes payment deposit before we enter production.
3. After we receive the deposit, we start to process the order.
4. Before production has been finished, we will contact you for machine details video to confirm and you should prepare the rest payment.
5. After the rest payment has been received, we start to ship out the goods for you.
d) How do you control quality through production process?
A: We have spot inspection and finished product inspection. We check the semi-finished goods before they go into next step production process.
e) How do you handle when your clients received defective products?
A: We offer one year warranty, and unartificial damage can be replaced free for charge. If you have a small problem, we will help you by send a video or a graphic. Anytime you has question, you can seek advice from phone call or online consultation (Wechat/ WhatsApp).
