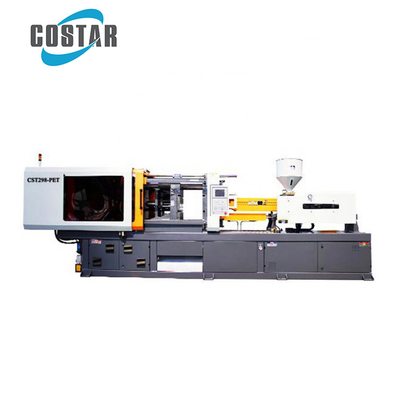

CST298-PET |
||
|
Injection Unit |
|
|
|
Screw diameter |
mm |
75 |
|
Screw L/D ratio |
L/D |
24 |
|
Injection capacity in theory |
cm3 |
1502 |
|
Injection weight(ps) |
g |
1592 |
|
oz |
56.3 |
|
|
Injection pressure |
MPa |
137 |
|
Injection rate |
g/s |
376 |
|
Plasticizing capacity |
g/s |
85 |
|
Screw speed |
rpm |
160 |
|
Clamping Unit |
|
|
|
Clamping force |
kN |
2980 |
|
Moving mould-plate stroke |
mm |
600 |
|
Max.Mould height |
mm |
690 |
|
Min.Mould height |
mm |
230 |
|
Space between tie-bars |
mm |
605x590 |
|
Hydraulic ejector force |
kN |
125 |
|
Hydraulic ejector stroke |
mm |
150 |
|
Ejector number |
n |
13 |
|
Other |
|
|
|
Pump pressure |
MPa |
16 |
|
Motor/Driving power |
kW |
37/37 |
|
Heating capacity |
kW |
24.73 |
|
Machine dimension |
m |
7.35x1.75 x 2.15 |
|
Machine weight |
t |
9 |
|
Oil tank capacity |
L |
415 |
1 Enhanced clamping mechanism to meet requirements for efficient production.
2 Excellent clamping features with optimized linkage mechanism to have faster and smooth operation.
3 Professional plasticizing unit is applicable for production of various raw materials, and to improve plasticize performance significantly.
4 Excellent injection performance with twin-cylinder injection mode, have more reliable and stable performance.
5 Professional platen optimization, the platen after finite element analysis and optimization has high rigidity and strength.
6 Centralized lubrication system with reliable protective configuration, quantitative distribution and centered lubrication, provide more professional lubrication protection and extend mechanical life.
7 New frame type structure, simple and clean appearance, with more reasonable stress on machine body and high rigidity.
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer, we supply the factory price with good quality, welcome to visit !
Q2:How about quality control in your factory?
A2: “ Quality is the key point, do what customers needs”
Q3: Is there complete machine include mould and other auxiliary equipment ?
A3: Yes ,what we are provide is the complete system and you will no need spend
a lot to find the suitable water chiller and color mixer...etc.
Q4: What is the language of the PLC and touch panel?
A4: English and Chinese, or other customized language
Q5: Can you help us with the shipment of this machine ?
A5: With honor ,we have our special shipment company which already cooperate
for long time, we will give you the best price we can. Also you can ask your own
shipping forwarder, we help you do other things. Customer satisfy, is our target.
