Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, PE/PP, Polylactic Acid
Condition:
New
Style:
Horizontal
Distance Between Tie Bars(Width)(mm):
670mm
Distance Between Tie Bars(Height)(mm):
670mm
Mold Height(mm):
250 - 720 Mm
Ejector Stroke(mm):
160 Mm
Ejector Force(kN):
70 KN
Theoretical Shot Volume(cm³):
1480 Cm³
Injection Rate (g/s):
422 G/s
Machine Type:
Hydraulic
Injection Weight (g):
1349 G
Screw Speed (rpm):
185 - 190 Rpm
Screw Diameter (mm):
75 Mm
Screw L/D Ratio:
19
Distance Between Tie Bars:
670*670 Mm
Weight (KG):
125000
Type:
Preform Injection
Place Of Origin:
China
Open Stroke(mm):
660 Mm
Model Number:
ZF360
Brand Name:
ONGO
Power (kW):
82.3 KW
Warranty:
3 Years
Key Selling Points:
Multifunctional
Applicable Industries:
Hotels, Building Material Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Printing Shops, Food & Beverage Shops, Other, Advertising Company
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Other

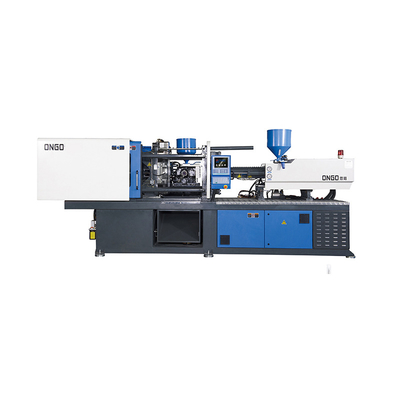

Product Name:
Fruit Box Injection Molding Machine
Oiltank Cubage:
620L
Max Mould Height:
750mm
Min Mold Height:
250mm
Machine Dimension(L*W*H):
7.21*1.9*2.34M
Plastic Type:
Thermoplastic
Automatic:
Yes
Clamping Force (kN):
3600
Keyword:
Plastic Injection Molding Machine
After-sales Service Provided:
Video Technical Support, Field Installation, Commissioning And Training, Online Support
After Warranty Service:
Video Technical Support, Online Support
Local Service Location:
None
Certification:
ISO
