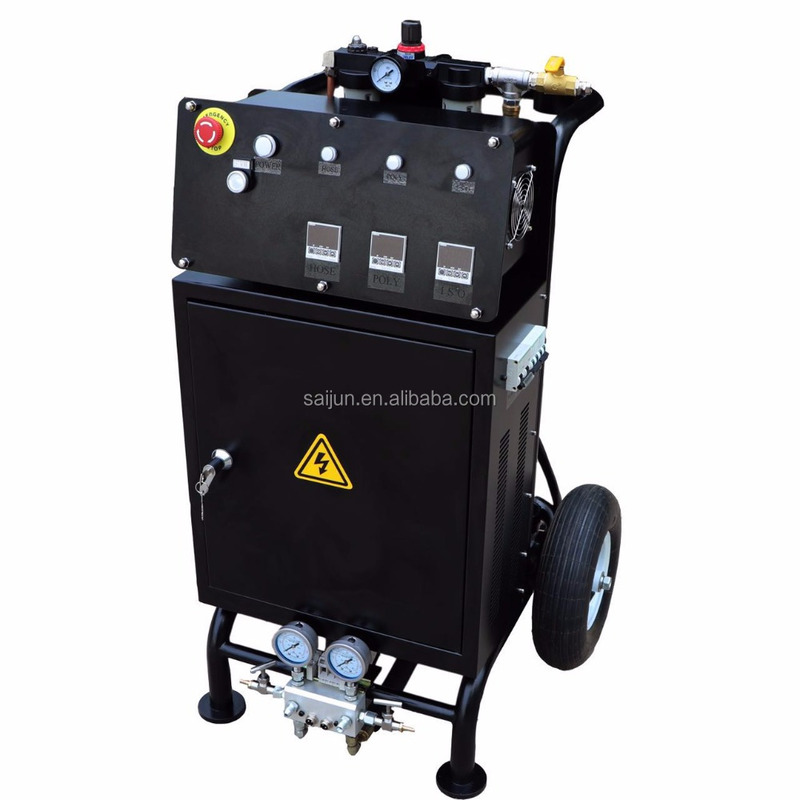

PU SPRAY FOAMING MACHINE
With the progress of human society, there is a great demand increase on the proportion fixed spraying equipment for polyurethane. Jinan Saijun CNC Technology CO., Ltd develops and manufactures proportion fixed equipment FD-411
Standard configuration:
Proportion Fixed Mainframe: 1 set
Self-cleaning spray/injecting gun: 1 set
Heating and preserved pipe: 49.2 feet (15m)
Connecting pipe for spray gun: 4.9 feet (1.5m)
Transfer pump: 2 sets
Technical parameter:
Electrical requirements single-phase: 220V 50Hz 30A
Compressed air requirements: 116psi(0.7Mpa) ,28CFM(1m³/min)
Output: 10kg/min
Shipping parameter:
G.W.: 220kg
Host and accessories box Volume: 820*900*1150mm
Heating box Volume: 1450*400*550mm
Item | FD-411 Polyurethane spray machine. |
Standard configuration | Proportion Fixed Mainframe 1 set |
Self-cleaning spray gun 1 set | |
Feeding pump 2 sets | |
Heating hose 49.2 feet (15m) | |
Connecting hose from feeding pump to machine 10 feet(3m) | |
Connecting hose from heating hose to gun 5 feet(1.5m) | |
Rings and Tools | |
Technical Data | The ratio of raw material 1:1(Fixed) |
The viscosity range of raw material 200-1000CPS (Under the operate temperature) | |
Working pressure 20 MPa (200 bar) | |
Max fluid temperature 88°C (190°F) | |
Max Output 10kg/min (22 lb/min) | |
Heater power 6000W each one | |
Heating hose power 1000W/15m | |
Max hose length 60m (196 feet) | |
Whole power 13500W | |
Voltage 230V 1-ph/400V 3-ph | |
Operate temperature 0°C-70°C | |
Clean mode Self-clean by air | |
Max heating hose length 196.8 feet (60m) | |
Pneumatic source 1MPa(10 bar,145 psi) | |
Machine size 870mm*700mm*1150mm 1450mm*400mm*550mm | |
Gross weight 250KG |
| Packaging Details: | WOODEN CASE |
|---|---|
| Delivery Detail: | 15WORKING DAYS |
Specifications PU foaming machine for:
