Home /Products/Biomass Pellet Mill/Make Biomass Pellets CE Approved High Efficiency Industrial Wood Biomass Pellet Machine

Make Biomass Pellets CE Approved High Efficiency Industrial Wood Biomass Pellet Machine

1.0 Sets
MOQ

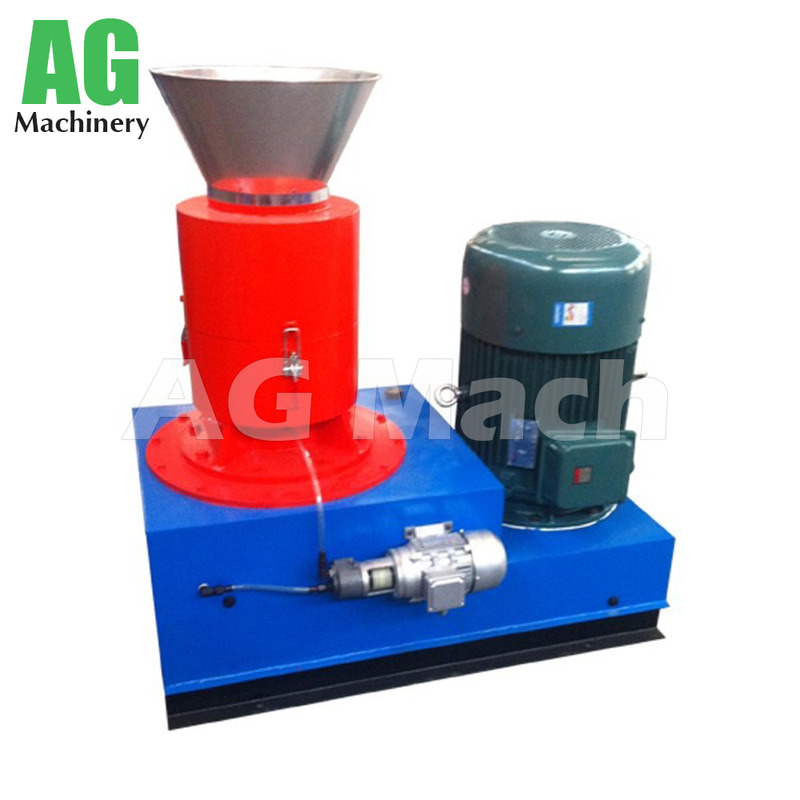

Make Biomass Pellets CE Approved High Efficiency Industrial Wood Biomass Pellet Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Other Country
Condition: New
Brand Name: AG
Voltage: 220V/380V/400V
Dimension(L*W*H): 1650*700*1300mm
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Farms, Home Use, Energy & Mining
Name: Wood Pellet Making Machine
Raw Material: Sawdust\straw\rice Husk\wood Waste
Application: Make Biomass Pellets
Type: Flat Die Wood Pellet Mill
Usage: Biomass Industry
Spare Parts: Flat Die+ Rollers
Pellet Size: 6/8/10mm
Motor: Chinese Brand
Color: Clients' Requirement
Keywords: Wood Pellet Making Machine
Weight: 1000kg
Power: 30KW
After-sales Service Provided: Online Support
Certification: CE; SGS
Basic Infomation
Place of Origin: Other Country
Brand Name: AG
Certification: CE; SGS
Payment & Shipping Terms
Packaging Details: Wooden Case / Iron Case / Container; Biomass Wood Sawdust Pellet Making Machine
Supply Ability: 50 Set/Sets per Month wood pellet making machine
Product Description
Product Description

Product Application:

It's a new generation of energy-saving equipments, which is mainly used to compress crushed corn straw, plant waste, bamboo powder, grass, straw, rice husk and wood chips etc. into cylindrical and square shape particles. Machines adopt bipolar speed adjusting, and have the characteristics of low power consumption, reasonable structure, economic and durable.

The wood pellet machine is mainly used for home and small process plant, It is mainly used for Wood, Straw, Cotton stalk, Rice husk, Peanut shell, Bamboo, Empty fruit branch, Pulverized coal and waste paper etc.

Advantages of final pellets is high density, high fuel value, low moisture and low ash content.

Model
Power
Capacity
Dimension
Weight
KAF 200

KAF 250

KAF 300

KAF 350

KAF 450

7.5KW
100-150 kg/h
1000*450*850 mm
350kg
KAF 250

15KW
200-250 kg/h
1200*550*1050 mm
550kg
KAF 300
22KW
250-300 kg/h
1250*600*1100 mm
750kg
KAF 350

30KW
400-500 kg/h
1650*700*1300 mm
1000kg
KAF 450

45KW
600-700 kg/h
1300*700*1500 mm
1450kg

Main Features

1.  The flat die wood pellet mill machine are easier to clean than the ring die pellet mill.
2.  Able to change die and roller faster and easily.
3.  Small and lightweight, making small-scale production possible.
4.  It is possible to view into the chamber when pelletizing, so you can solve any problem in time.

Detailed Images

Electric Cabinet


Brand: AG Mach

Electrical Controller which control the operation of wood pellet machine efficiently.

Motor


Brand: AG Mach

The Flat Die Wood Pellet Machine can be driven by electric motor or diesel engine or tractor driven.

Our standard voltage: 380V/50Hz; three phases

Details: Copper Wire


Auto Lubrication System


Brand: AG Mach



Oil Pump (automatic lubrication device) for main shaft and gear. Which can improve the service life of shaft and gear.

The oil pump is only available for model KAF-350 and KAF-450.

Screw Feeder


Brand: AG Mach

This screw feeder is Optional.

Usually used for large model like KAF-450

Which can mix the raw materials very well and keep a steady speed of material feeding into pellet machine.

Different Models
Spare Parts


Flat Die


Material: 20CrMnTi Alloy Steel
Pellet Hole: 6mm, 8mm, 10mm
Lifetime: 700-800 hours


Rollers


Material: 20CrMnTi Alloy Steel
1pc Central Shaft and 2pcs Roller skin
Lifetime: 700-800 hours
