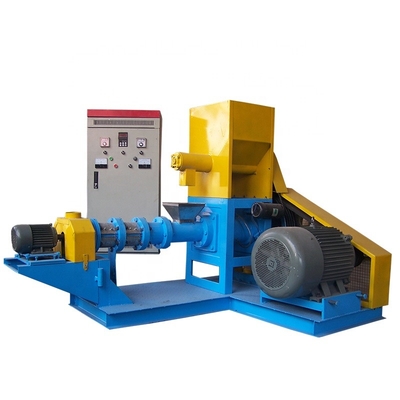

60-80kg/h fish feed making machine mini fish feed pellet extruder
Fish feed pellet extruder machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. Fish feed pellet extruder machine also can make pet feed for dog,cat etc with different shape and chicken feed.The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours. According to your requirement and production scale, fish feed pellet extruder machine can be classified into dry type machine and wet type machine.
Raw materials of fish feed pellet extruder machine:
Our fish feed pellet extruder machine is based on the raw material of corn meal, flour, Wheat middling, Wheat bran, rice bran, soybean meal, cottonseed meal, fish meal, bone meal, meat meal and etc.
------ Moisture of raw material: 20% -25%
------ Raw material type: Powder
------ Feed pellets diameter is 1-12mm.
1. This fish feed pellet extruder machine is widely used for producing floating and sinking feed pellets of all kinds of aquatic animal.
2. Different molds can be chosen to make pellets with different diameters and shapes (0.9-15mm).It can produce different shapes feed for fish, dog, cat etc.
3. High wear resistant degree and long service time.
4. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
5. Advanced technology and humanized design ensures easy operation and reliable performance, high efficiency, low power consumption.
6. Screw sleeve of this small fish food extruder adopts enchase alloy steel strip structure, which guarantees long service life..
7. Auto-temperature control system makes the temperature controlling more direct viewing and the parameter more precise.
8. Final processed aquatic feed pellets have unique taste and high nutritious.
| Model | Capacity(kg/h) | Main Power(kw) | Feed Power(kw) | Cut Power(kw) | Screw Dia(mm) | Pelletsize (mm) |
| DGP40 | 40-60 | 7.5 | 0.4 | 0.4 | Φ40 | 1-12mm |
| DGP50 | 60-80 | 11 | 0.4 | 0.4 | Φ50 | 1-12mm |
| DGP60 | 100-150 | 15 | 0.4 | 0.4 | Φ60 | 1-12mm |
| DGP70 | 180-250 | 18.5 | 0.4 | 0.4 | Φ70 | 1-12mm |
| DGP80 | 300-350 | 22 | 0.4 | 0.6 | Φ80 | 1-12mm |
| DGP90 | 400-450 | 37 | 1.1 | 0.6 | Φ90 | 1-12mm |
| DGP120 | 500-700 | 55 | 1.1 | 1.5 | Φ120 | 1-12mm |
| DGP135 | 800-1000 | 75 | 1.1 | 2.2 | Φ133 | 1-12mm |
| DGP160 | 1200-1500 | 90 | 1.5 | 2.2 | Φ155 | 1-12mm |
| DGP200 | 1800-2000 | 132 | 1.5 | 3.0 | Φ195 | 1-12mm |
