Product Information

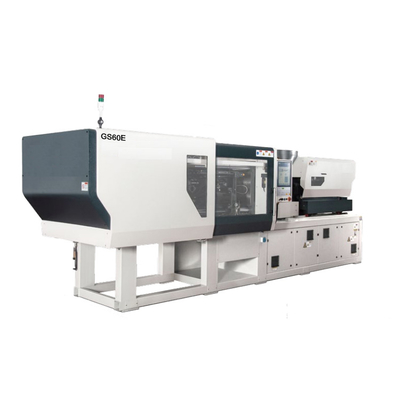

| Model | GS60E | ||||||
| Specification | 80V | 150V | |||||
| Injection Unit | A | B | C | A | B | C | |
| Screw diameter | mm | 20 | 22 | 26 | 26 | 28 | 32 |
| Screw L/D ratio | L/D | 20 | 20 | 18 | 21 | 21 | 19 |
| Cylinder head volume | cm³ | 28 | 34 | 47 | 58 | 67 | 88 |
| Shot weight | g | 25 | 31 | 43 | 53 | 61 | 80 |
| Injection pressure | MPa | 270 | 223 | 160 | 255 | 220 | 168 |
| Injection rate | g/s | 57/100 | 69/121 | 97/169 | 97/169 | 112/196 | 146/256 |
| Shot speed | mm/s | 200/350 | 200/350 | ||||
| Injection stroke | mm | 90 | 110 | ||||
| Screw speed | rpm | 400 | 400 | ||||
| Nozzle touch force | KN | 14.8 | 14.8 | ||||
| Sphere diameter of nozzle | mm | SR10 | SR10 | ||||
| Clamping Unit | |||||||
| Clamping force | KN | 600 | |||||
| Max. mould opening stroke | mm | 270 | |||||
| Space between tie-bars | mm | 370*320 | |||||
| Min. Mould size | mm | 240*205 | |||||
| Min. Mould height | mm | 150 | |||||
| Max. Mould height | mm | 370 | |||||
| Dia of mould location hole | mm | φ100H7 | |||||
| Ejector stroke | mm | 70 | |||||
| Ejector force | KN | 20 | |||||
| Ejector number | PCS | 5 | |||||
| Others | |||||||
| Motor power | kw | 8.9/9.5 | 11.8/11 | ||||
| Heating power | kw | 5.25 | 7.95 | ||||
| Heating section | 3+3 | 3+3 | |||||
| Machine dimension | m | 4.25*1.3*1.54 | 4.25*1.3*1.54 | ||||
| Machine weight | t | 3.3 | 3.5 | ||||
Application
Full-electric injection molding machine is an independently researched and developed full-electric injection molding machine; it is equipped with the mechanical structure that is suitable for high speed and high precision operation. The high-speed servo control circuit it equipped is available for the plastic industry pursuing efficient and high-tech requirements.
It integrated the most advanced drive and transmission technology, combined with abundant specialized technical demands of molding, blended simple and convenient humanized design concept, adopted modernized digital processing technology, and equipped with the excellent properties such as energy saving, environmental protection, high speed, efficient, precise control, reliable operation and convenient operation, which greatly satisfied customers various demands for machine stability, production efficiency and environmental protection property.
The device is widely applied to various fields of plastic processing industry, including electric equipment products, photoelectric digital products, automobile accessory and aviation product, medical treatment and food packaging, cosmetic packaging, plastic toy,sports leisure instrument, and optics etc.
